  3. SNAKEFLEX
NSSHÖU O/J
DIN VDE 0250 Part 812 approved

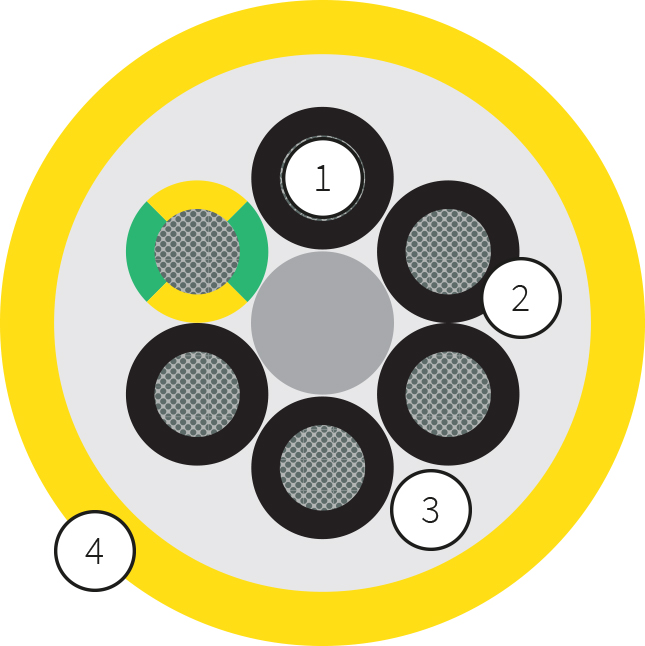

  1. PHASE CONDUCTORS
    MATERIAL: tinned copper
    CONSTRUCTION: class 5 VDE 0295 (IEC 60228)
  2. INSULATION
    MATERIAL: 3GI3 quality rubber compound, according to VDE 0207 Part 20
    NOMINAL THICKNESS: according to VDE 0250 Part 812

    CORES IDENTIFICATION
    According to VDE 0293 Part 308 (HD 308)
  3. INNER SHEATH
    MATERIAL: rubber compound GM1b quality,according to VDE 0207 Part 21
  4. OUTER SHEATH
    MATERIAL: rubber compound 5GM5 quality,according to VDE 0207 Part 21
    COLOUR: yellow

APPLICATION

Heavy duty, flame retardant, abrasion, notch, tear, oils and fats resistant flexible cable for aggressive environments. Snakeflex is suitable for installation inside or outside in dry, damp or wet environments and in hazardous environments (subject to local regulations). It can be immersed in fresh water, salt water, waste water, storm water, oily water and sewage contaminated water to a depth of 100 meters. For power supplies and controlling in mines, quarries, industrial plants, agricultural applications and in general where mechanical stress and abrasion is likely.

TECHNICAL DATA
